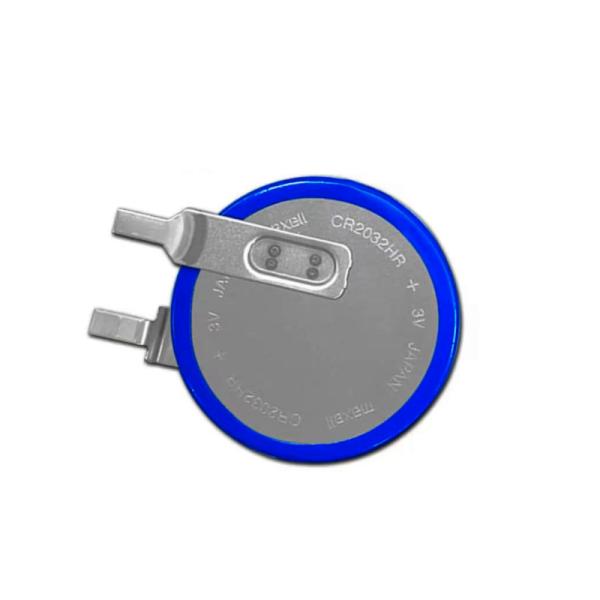

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Name: Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR
Brand: Maxell
Price: 6 USD

Wholesale Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR from china suppliers

Brand Name : Maxell

Model Number : CR2032HR/CR2050HR/CR2450HR

Certification : ROHS

Place of Origin : JP

MOQ : 1

Price : 6

Payment Terms : T/T,Western Union

Supply Ability : 1000

Delivery Time : 5-8DAY

Packaging Details : T/R

Model : CR2032HR/CR2050HR/CR2450HR

Nominal voltage (V) : 3

Nominal capacity (mAh)*1 : 200/350/550

Nominal discharge current (mA) : 0.2

Operating temperature range (deg. C)*2 : -40 to +125

Acceleration resistance : Max. 2000 G

Diameter (mm) : 20.0/20.0/24.5

Height (mm) : 3.2/5.0/5.0

Weight (g)*3 : 3.0/4.1/6.8

Contact Now

Heat Resistant Coin Type Lithium Manganese Dioxide Batteries (CR) industrial lithium batteries CR2032HR CR2050HR CR2450HR

Maxell’s original sealing technology and highly heat-resistant material expands operating temperature range remarkably, making the batteries supremely suitable for automobile applications — for powering TPMS (Tire Pressure Monitoring System) sensors, for example.
The range of technologies where these batteries can be applied is expanding to include IoT sensors and HACCP temperature loggers that require a wide operating temperature range.

Features

Wide operating temperature range: -40 deg. C to +125 deg. C^*

* When using at temperatures exceeding 85 deg. C, please consult Maxell in advance for conditions of use.

Superior leak-resistant characteristics even under high temperature and acceleration.

Can be used even under 2000 G, which is equivalent to driving at 300 km/h.

Even when exposed to high temperature or humid atmosphere for long periods of time, the increase in internal resistance can be suppressed.

UL Recognized Components

The heat resistant coin type lithium manganese dioxide battery is a UL recognized component. (Technician Replaceable)

Recognized model: CR2450HR, CR2050HR, CR2032HR, CR2032HRS

Certification Number: MH12568

Applications

TPMS (Tire-Pressure Monitoring System)
ETC (Electronic Toll Collection systems)
Keyless entry systems
Seat location sensors
Communication tags, beacons
Temperature data loggers (HACCP temperature loggers)
Logistics tags
FA instruments (measuring instruments, onboard microcomputers, sensors)
IoT sensors

Model		CR2032HRS	CR2032HR	CR2050HR	CR2450HR
Nominal voltage (V)		3	3	3	3
Nominal capacity (mAh)^*1		200	200	350	550
Nominal discharge current (mA)		0.2	0.2	0.2	0.2
Operating temperature range (deg. C)^*2		-40 to +125
Acceleration resistance		Max. 3300 G	Max. 2000 G
Dimensions^*3	Diameter (mm)	20.0	20.0	20.0	24.5
Dimensions^*3	Height (mm)	3.2	3.2	5.0	5.0
Weight (g)^*3		3.0	3.0	4.1	6.8

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

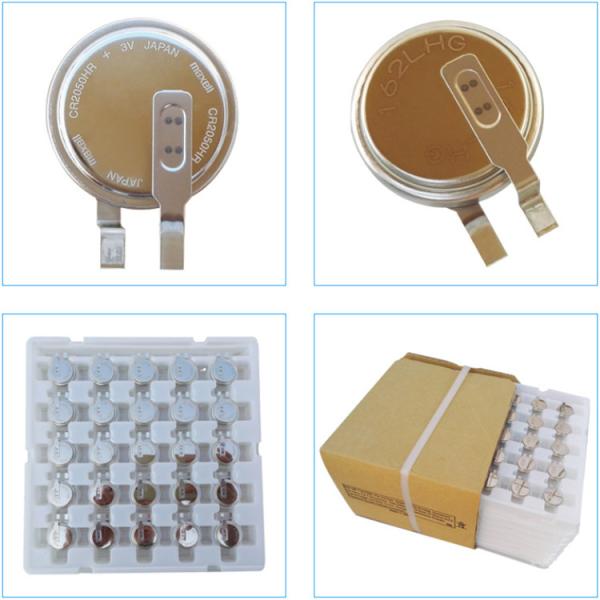

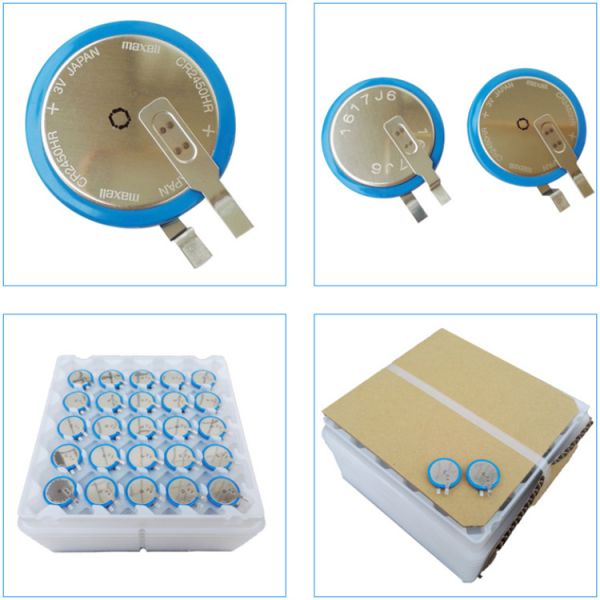

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
